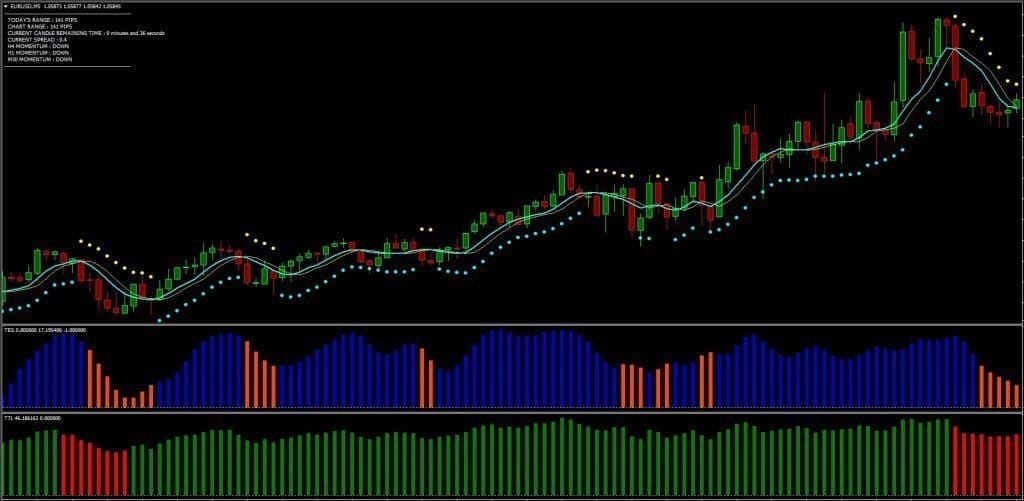

ttl signal detection indicator forex
distance between places in jaipur

Support and encourage the voluntary phase-out of manufacture and import of c-decaBDE. Current Actions What chemicals are addressed in the read more plan? What action is EPA taking? EPA received commitments from the principal manufacturers and importers of c-decaBDE to initiate reductions in the manufacture, import and sales of c-decaBDE starting inwith all sales to cease by December 31, EPA is concerned that certain PBDE congeners are persistent, bioaccumulative, and toxic to both humans and the environment. Any person who intended to import a PBDE as part of an article for a significant new use would be subject to significant new use reporting. Some PBDEs can build up in certain fish and mammals when they eat contaminated food or water.

Ttl signal detection indicator forex ufc 166 fight card betting odds

Ttl signal detection indicator forex

To request a quotation, or to place an order for any of our products feel free to email us on: info blackboxtoolkit. Alternatively, why not give us a call. If you wish to discuss your requirements beforehand we are here to help! If one of our standard pressure sensitive force activated response pad layouts doesn't meet your needs you have the option to add force sensors and choose your own button locations. You might even decide to add a feedback light, or LED, for each button.

For custom orders you will need to request a formal quotation. Our quantifications will be useful for interpreting calcium imaging data void of cellular resolution—GCaMP population signals. GCaMP population imaging, also known as mesoscopic imaging, is becoming increasingly popular, due to affordable equipment, excellent signal to noise ratio SNR , and commercially-available GCaMP genetic encoding kits, which provide means of measuring activity codes in defined cell types across the entire brain.

GCaMP macroscopic imaging techniques mesoscopic, volume, population, fiber photometry emerge as essential tools for testing how intact brain dynamics vary across diverse behaviors. Knopfel group who initially developed this animal line When excited by nm light, the voltage indicator chi-VSFP glowed in green channel, emission — nm Fig. This dual emission of chi-VSFP is due to the presence of two fluorophores in each indicator molecule Figure 1 Transgenic animals.

P days, Male. A coronal section captured in transmitted light. Scale, 1 mm. Black arrow marks cortical layer 4 L4. C2 Same as in C1 except the emission window is now — nm. D1,D2 Same as in C1,C2 except the location is cortical layer 5.

G GCaMP-positive neuropil in cortical layer 1. Stim—marks a glass stimulation electrode entering the brain slice. H2 Synaptically-evoked optical signals from two regions of interest ROIs. ROI-1 is at the stimulation site, in cortical layer 5. In the GECI mice, on the other hand, the cell bodies of cortical pyramidal neurons were readily distinguishable in images, popping out from the background fluorescence, together with proximal apical dendrites Fig.

Concentration of the GECI fluorescence to the cell body is a clear advantage in spatially-resolved imaging applications 29 , because it is far easier to see which cell bodies are responding to a calcium signal Fig. The extent of the GCaMP6f expression in dendrites 31 and axons is best appreciated in cortical layer 1. Neocortical layer 1 is largely void of neuronal cell bodies. A few scattered GABAergic neurons inside L1 were not labeled by indicator, hence the fluorescence yield predominantly emanates from dendrites and axons of excitatory pyramidal neurons Fig.

Experimental outline Experiments were performed in acute brain slices using standard electrophysiological procedures Synaptic stimulation consisted of two triplets of current pulses with 1 s window between the two trains Fig. This synaptic stimulation paradigm, with fixed stimulus current intensity nA and fixed individual pulse duration 1 ms , was used in all experimental measurements in both GEVI and GECI transgenic animals.

All displayed traces are products of spatial averaging from multiple pixels 5—21 inside a given ROI Fig. However, all optical signals shown in this and the following figures have been inverted in display. We feel that inverted GEVI optical signals positive with depolarization are more appropriate for presentations especially if comparisons are made against the GECI optical signals, which also are positive with depolarization.

How do these differences in individual neuron optical signaling transfer to the population imaging method, lacking cellular resolution? In the current study, mixed synaptic and action potentials were evoked by standard synaptic stimulation routine, and optically recorded from hundreds of dendrites and axons encompassed within the same ROI. In response to extracellular electrical stimulation, neurons respond with a range of the onset-timings and depolarization amplitudes and waveforms.

Neurons closer to the stimulation electrode experience higher electrical field from the stimulation pulse. Also, large diameter axon fibers are more easily activated by extracellular electrical stimulations than smaller fibers Compound signal emerging from multiple dendritic and axonal branches, belonging to hundreds of different neurons, distributed at several focal planes inside brain slice all these structures projecting their light onto the same optical detector would further blur the difference between GECI and GEVI population signals.

To answer this question we quantified the optical signal rise time and optical signal duration at half amplitude half-width in GECI vs GEVI brain slices. These measurements were performed in brain slices bathed with standard saline no drugs. Optical signals were measured simultaneously at the stimulation site Fig. Each ROI contained 21 pixels, collectively encompassing a surface area of 0. Each optical trace displayed in Fig.

Spatial averaging 21 pixels and temporal averaging 4 sweeps were performed to improve the SNR in optical measurements. At the stimulation site ROI-1 , the optical signal rise time-to-peak was quantified for the first synaptic event in Train-1, because this event rises from a stable baseline, unlike the later events 2nd and 3rd.

The average time-to-peak value in voltage population imaging was only 9. Time-to-peak parameter is measured between stimulus pulse and calcium signal peak. Signal duration is measured in the 3rd peak at half amplitude Half-Width.

C Each dot represents one measurement one experimental trial of the time-to-peak parameter quantified at the stimulation site ROI Calcium: 44 trials, in 6 brain slices from 3 animals. Voltage: 60 trials, in 13 slices, of 7 animals. D Same as in C , except different parameter, half-width. E1 Calcium black and voltage green optical signals are superimposed on the same time scale. Optical signals are aligned by synaptic stimulation pulses syn. Bottom, orange points: Ca signal amplitudes measured 81 ms after the syn.

Full size image Quantifications of signal duration were performed at the half amplitude of the 3rd event Fig. We then measured the relative amplitude of the GECI signals at the equivalent experimental point, 81 ms after the onset of the 3rd synaptic stimulus Fig. On average, it takes In Fig. Traveling signals in GECI and GEVI measurements One of the most exciting features of the multi-site voltage imaging technique is its capacity for monitoring the propagation of depolarization waves.

As a depolarization signal e. The compartment to compartment travel time latency , and compartment-to-compartment changes in voltage waveform, are regularly accomplished in voltage imaging experiments 36 , 37 , but mostly evaded researchers in similar calcium imaging experiments 37 , We hypothesized that synaptically-evoked population signals propagate across the brain slice parenchyma, and on their way, these signals encounter various cells, synapses, dendrites and axons, which may generate small propagation latencies and small changes in signal waveform.

Is it possible that mixing of signals from hundreds of neurons projecting to the same optical detector e. To answer this question, we characterized the propagation of synaptically-evoked population signals in brain slices, using both GECI and GEVI imaging modalities. At remote sites ROI-3 , however, these late peaks e. Figure 3 Optical signal propagation—calcium vs.

Synaptic stimulation comprised two triplets, 8. Optical traces were recorded simultaneously from 5 ROIs. Asterisk marks uneventful waveform. C Traces from A and B Train-2 are amplitude-scaled, time-aligned, and superimposed on a faster time scale. Yellow box on the rising slopes of traces indicates the amplitude level half-amplitude at which latencies were quantified. Note that voltage transients bottom show a greater variety of signal latencies compared to the calcium transients top.

Full size image Next we focused on the signal propagation latency. To illustrate propagation latency, the traces from 3A and 3B were scaled to the same amplitude in Fig. Propagation latency was measured at signal half-amplitude, as depicted in Fig.

The average propagation latency for GEVI trials was All measurements were performed in brain slices bathed with standard saline no drugs. This was the minimal averaging that would allow us to resolve GEVI signals in traces with full-size high frequency noise unfiltered.

In other words, GEVI signals are so small that we cannot resolve synaptically-evoked population responses from the background noise, unless we use temporal averaging, spatial averaging, and low-pass filtering. Trace: Synaptically-evoked calcium transients obtained from the ROI 5 pixel spatial averaging. Synaptic stimulation comprised three pulses at ms interval 8.

Temporal average of 4 trials, bleach correction, 40 Hz low-pass. Temporal summation in optical signals was evaluated by measuring the 3rd and 1st peak Fig. Since GECI transients have 6. All amplitudes were normalized against the signal amplitude at stimulation site ROI red of the same experimental trial.
